Dual Frequency External WiFi Antenna , 2.4 Ghz High Gain Omni Antenna

Brand Name : YD

Model Number : YDLTE-009

Certification : ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : 100pcs

Price : negotiation

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 30000 Piece/Pieces per Day

Delivery Time : 5-15 working days

Packaging Details : 1pcs in a transparent polybag, 40 bags put into a carton.

Product name : Omni WIFI Antenna

V.S.W.R : ≤1.5

Function : 2G/3G/4G/WIFI

Frequency Range : 2400-2500Mhz

Gain : 2DBI

Connector : SMA /custom

Color : Black/custom

Type : External

Contact Now

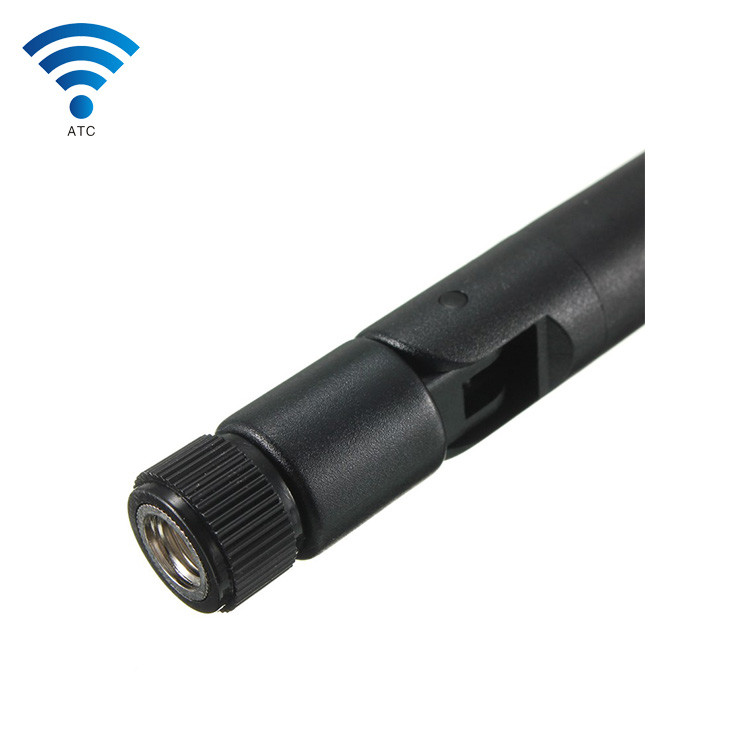

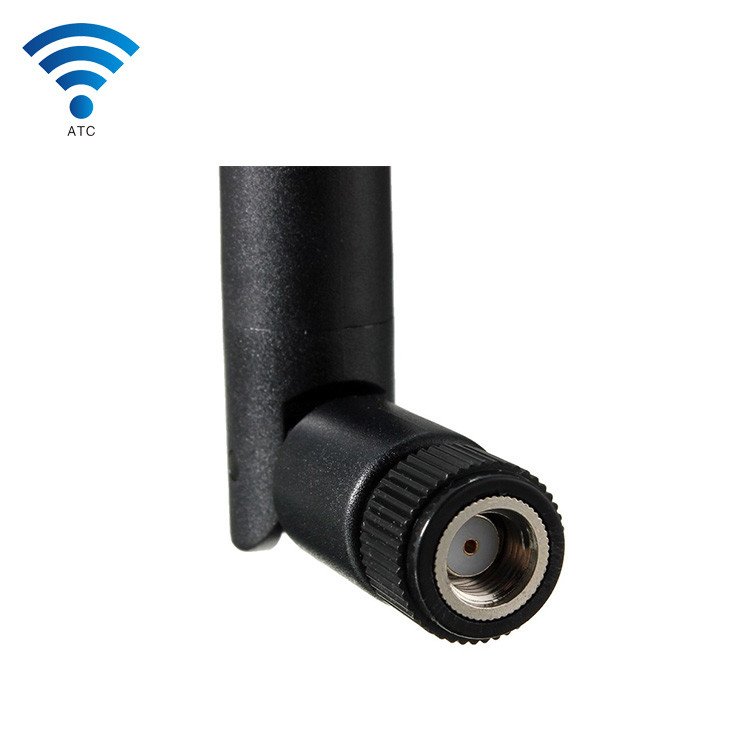

SMA connector External 2.4GHz / WiFi Small Rubber Stick Antenna

Product Description

5.8G Omni Antenna

Product Description:

Applications: Features:

* 5.8GHz UNII applications

* 5.8GHz ISM applications

* 5.8GHz WLAN,WiFi systems

* Wireless video system

* Point to multipoint applications

Features:

* Low VSWR, high gain

* Strong corrosion resistance,
strong adaptability of environment

* DC grounded design

* Integral N-Female connector

* Supplied with mast mounting kit

Specifications
Frequency Range-MHz	5725 to 5850
Bandwidth-MHz	125
Gain-dBi	8
Vertical Beamwidth-°	16
VSWR	≤1.5
Electrical Downtilt-°	5
Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	100
Connector	N Female
Dimension-mm	φ20×300
Weight-Kg	0.2
Mounting Mast Diameter-mm	Ф40 to 50

Dual Frequency Antenna 2.4G 5.8G

Product Description:

Applications: Features:

* 2.3 to 2.5GHz and 5.1 to 5.8GHz ISM band

* Base station antenna for 2.4GHz/5.8GHz WLAN,WiFi system

* WiFi system

* Point to multipoint

Features:

* High gain, Low VSWR

* Sealed with high strength fiberglass tube

* Steel mounting kit

* Mast mounting

* Integral N female connector

Specifications
Frequency Range-MHz	2300-2500/500-5800
Bandwidth-MHz	200
Gain-dBi	9
Vertical Beamwidth-°	13
VSWR	≤1.5
Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	100
Connector	N Female
Length-mm	800
Mounting	Mast
Mounting Mast Diameter-mm	Ф35 to Ф50
Weight-Kg	0.75
Rated Wind Velocity-m/s	60

2400-2500Mhz Omi Antenna

Product Description:

Applications: Features:

* 2.3 to 2.5GHz ISM band

* Base station antenna for 2.4GHz WLAN,WiFi system

* WiFi system

* Point to multipoint

Features:

* High gain, Low VSWR

* Sealed with high strength fiberglass tube

* Steel mounting kit

* Mast mounting

* Integral N female connector

Specifications
Frequency Range-MHz	2400-2500
Bandwidth-MHz	200
Gain-dBi	9
Vertical Beamwidth-°	13
VSWR	≤1.5
Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	100
Connector	N Female
Length-mm	800
Mounting	Mast
Mounting Mast Diameter-mm	Ф35 to Ф50
Weight-Kg	0.75
Rated Wind Velocity-m/s	60
