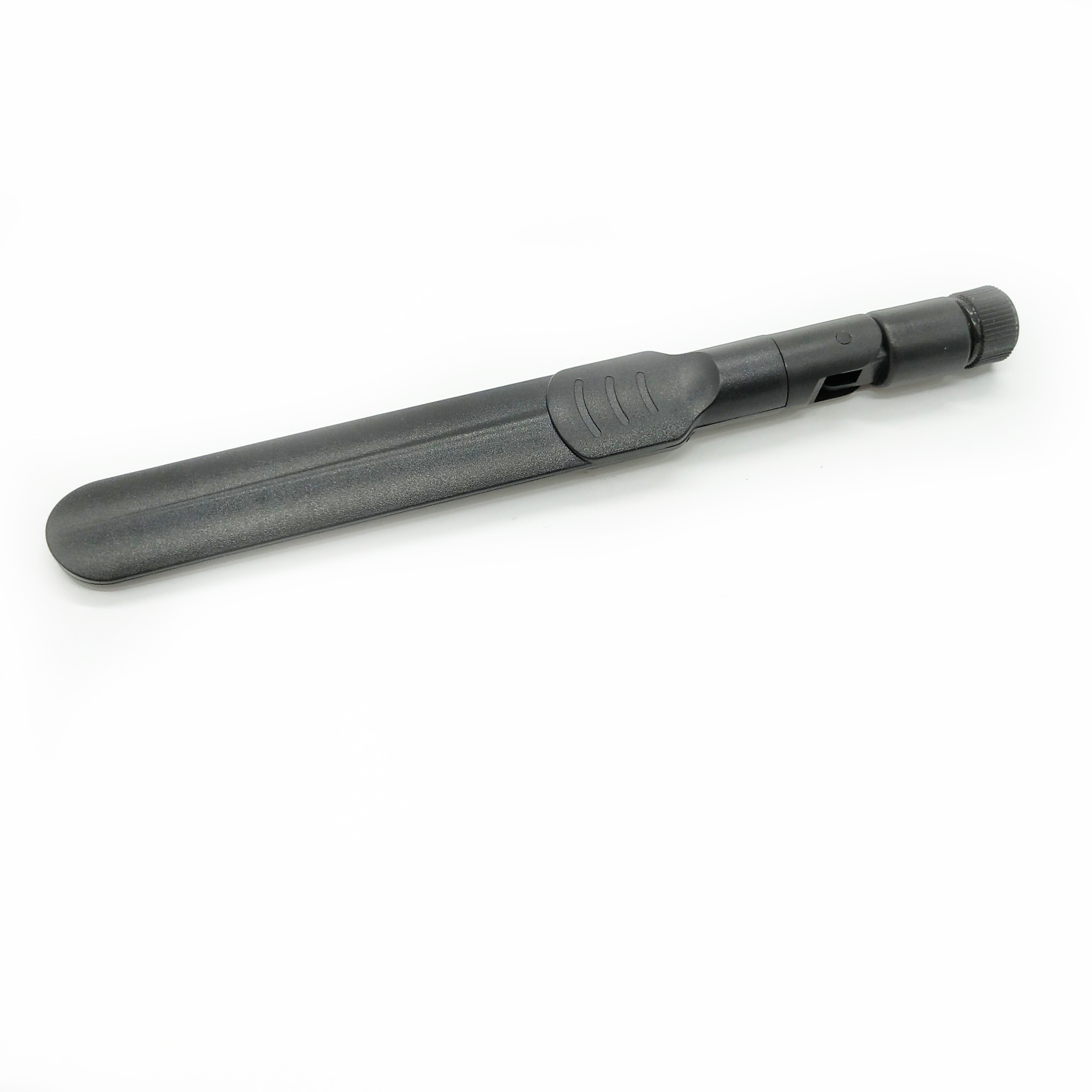

160mm 5DBi Rubber Duck 4G LTE External Antenna SMA - Male Connector
| Electrical specifications |
| Frequency Range(MHz) | 800-2700 |
| Impedance(ohm) | 50 |
| Gain (dBi) | 5.0 |
| Polarization | Vertical |
| Radiation | Omni |
| VSWR | <1.5 |
| Maximum input power (W) | 50 |
| Mechanical specifications |
| Connector | SMA-Male |
| Height | 160mm |
| Radome Material | Polyurethane |
| Color | White |
| Operating temperature (℃) | -40～80 |
Application:
1. Wireless Communication System
Features:
• Low V.S.W.R. / Low Loss Design / High Gain
• Low Loss RF Coaxial Connector Cable Feed
• High Efficiency and Sensitivity
This 2.4g 5.8g Dual Band omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi
gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for
IEEE 802.11b and 802.11g wireless LANs

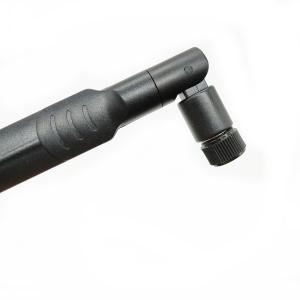

This flexible antenna features a tilt-and-swivel RP-SMA connector, allowing them to be used vertically, at a
right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points
and radios that are equipped with RP-SMA connectors.
RFQ:
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality. If you just need a
blank sample to check the design and quality. We will provide you sample for free as long as you afford the
express freight.
Q :What can I get the price?
A :We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q :What is your term of delivery?
A :For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS.
usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one
month to arrive. You can also select shipping by Air, but freight charge will be more expensive.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order.
Product Tags:
|
|
Rubber Duck 4G LTE Antenna 5DBI Gain 160mm Height With High Efficiency Images
|
